Product Description

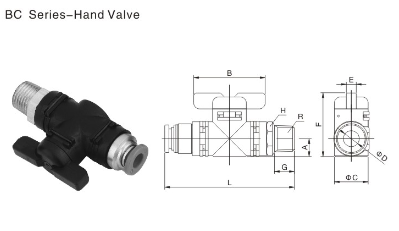

| Model | OD | R | A | G | B | H | E | F | L | OC |
| BC6-M5 | 6 | M5 | 9 | 5 | 36 | 15 | 5 | 32 | 58 | 16.5 |
| BC6-01 | 6 | PT1/8 | 9 | 8 | 36 | 15 | 5 | 32 | 61 | 16.5 |
| BC6-02 | 6 | PT1/4 | 9 | 10 | 36 | 15 | 5 | 32 | 62 | 16.5 |
| BC6-03 | 6 | PT3/8 | 9 | 10 | 36 | 17 | 5 | 32 | 63 | 16.5 |
| BC6-04 | 6 | PT1/2 | 9 | 11 | 36 | 21 | 5 | 32 | 67 | 16.5 |
| BC8-01 | 8 | PT1/8 | 9 | 8 | 36 | 15 | 5 | 32 | 61.5 | 16.5 |
| BC8-02 | 8 | PT1/4 | 9 | 10 | 36 | 15 | 5 | 32 | 62.5 | 16.5 |
| BC8-03 | 8 | PT3/8 | 9 | 10 | 36 | 17 | 5 | 32 | 63.5 | 16.5 |
| BC8-04 | 8 | PT1/2 | 9 | 11 | 36 | 21 | 5 | 32 | 67.5 | 24.5 |
| BC10-01 | 10 | PT1/8 | 12.5 | 8 | 44 | 24 | 5.5 | 41.5 | 81 | 24.5 |
| BC10-02 | 10 | PT1/4 | 12.5 | 11 | 44 | 24 | 5.5 | 41.5 | 83 | 24.5 |
| BC10-03 | 10 | PT3/8 | 12.5 | 11 | 44 | 24 | 5.5 | 41.5 | 83 | 24.5 |
| BC10-04 | 10 | PT1/2 | 12.5 | 11 | 44 | 24 | 5.5 | 41.5 | 83 | 24.5 |
| BC12-01 | 12 | PT1/8 | 12.5 | 8 | 44 | 24 | 5.5 | 41.5 | 81 | 24.5 |
| BC12-02 | 12 | PT1/4 | 12.5 | 11 | 44 | 24 | 5.5 | 41.5 | 83 | 24.5 |
| BC12-03 | 12 | PT3/8 | 12.5 | 11 | 44 | 24 | 5.5 | 41.5 | 83 | 24.5 |
| BC12-04 | 12 | PT1/2 | 12.5 | 11 | 44 | 24 | 5.5 | 41.5 | 83 | 24.5 |
/> />
|
Model |
?D |
A |
B |
?C |
E |
F |
L |
|
BUC-4 |
4 |
9 |
36 |
16.5 |
5 |
32 |
51.5 |
|
BUC-6 |
6 |
9 |
36 |
16.5 |
5 |
32 |
52.5 |
|
BUC-8 |
8 |
9 |
36 |
16.5 |
5 |
32 |
53.5 |
|
BUC-10 |
10 |
12.5 |
44 |
24.5 |
5.5 |
41.5 |
72 |
|
BUC-12 |
12 |
12.5 |
44 |
24.5 |
5.5 |
41.5 |
72 |
|
BUC-14 |
14 |
12.5 |
43.5 |
24 |
5.5 |
41.5 |
85 |
|
BUC-16 |
16 |
12.5 |
43.5 |
24 |
5.5 |
41.5 |
93 |
/>
/>
/>
/>
