Order Code
Technical Specification
|
Fluid |
Air ,if use liquid please contact factory |
|
|
Max.working Pressure |
1.32Mpa(13.5kgf/cm?) |
|
|
Pressure Range |
Normal Working Pressure |
0-0.9 Mpa(0-9.2kgf/cm?) |
|
Low Working Pressure |
-99.99-0Kpa(-750~0mmHg) |
|
|
Ambient Temperature |
0-60? |
|
|
Applicable Pipe |
PU Tube |
|
|
Material |
Stainless Steel |
|

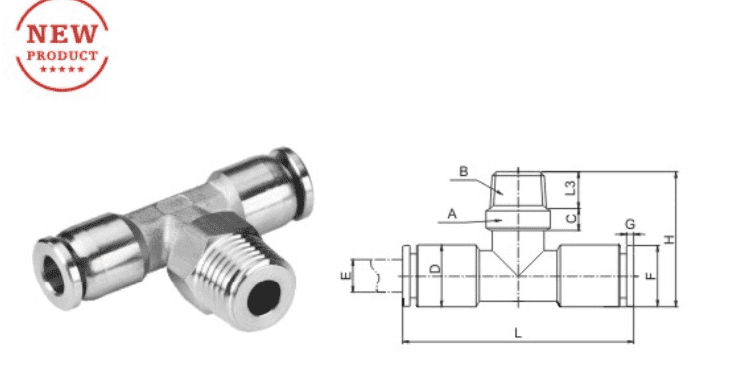

Dimension
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
L3 |
|
BKC-PB4-01 |
12 |
PT1/8 |
7 |
8 |
4 |
10 |
2 |
28 |
8 |
|
BKC-PB4-02 |
14 |
PT1/4 |
7 |
8 |
4 |
10 |
2 |
28 |
9 |
|
BKC-PB6-01 |
12 |
PT 1/8 |
7 |
10 |
6 |
12 |
2 |
30 |
8 |
|
BKC-PB6-02 |
14 |
PT1/4 |
7 |
10 |
6 |
12 |
2 |
31 |
9 |
|
BKC-PB6-03 |
17 |
PT3/8 |
7 |
10 |
6 |
12 |
2 |
32 |
9 |
|
BKC-PB8-01 |
12 |
PT 1/8 |
7 |
12 |
8 |
14 |
2 |
32 |
8 |
|
BKC-PB8-02 |
14 |
PT 1/4 |
7 |
12 |
8 |
14 |
2 |
33 |
9 |
|
BKC-PB8-03 |
17 |
PT3/8 |
7 |
12 |
8 |
14 |
2 |
35 |
9 |
|
BKC-PB10-02 |
14 |
PT 1/4 |
7 |
15 |
10 |
16 |
2 |
35 |
9 |
|
BKC-PB10-03 |
17 |
PT3/8 |
7 |
15 |
10 |
16 |
2 |
36 |
9 |
|
BKC-PB10-04 |
22 |
PT1/2 |
7 |
15 |
10 |
16 |
2 |
40 |
13 |
|
BKC-PB12-02 |
14 |
PT 1/4 |
7 |
17 |
12 |
18 |
2 |
38 |
9 |
|
BKC-PB12-03 |
17 |
PT3/8 |
7 |
17 |
12 |
18 |
2 |
38 |
9 |
|
BKC-PB12-04 |
22 |
PT1/2 |
7 |
17 |
12 |
18 |
2 |
41 |
13 |
Note:NPT?PT?G thread are optional
