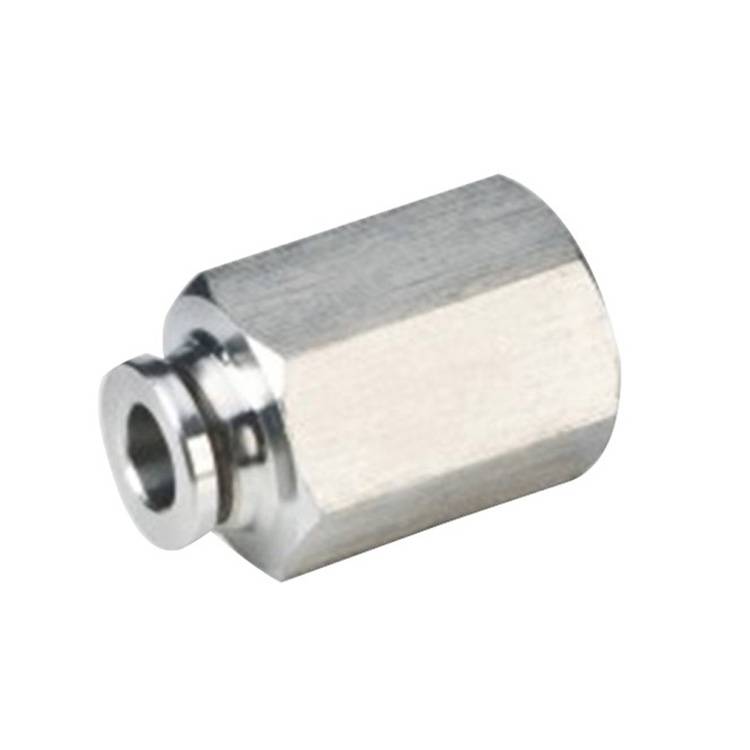

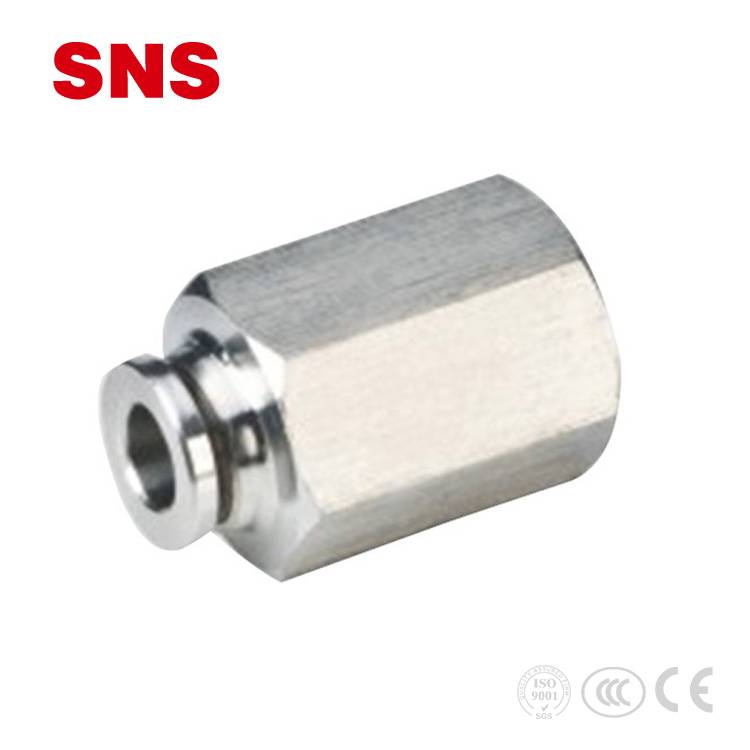

Order Code
Technical Specification
|
Fluid |
Air ,if use liquid please contact factory |
|
|
Max.working Pressure |
1.32Mpa(13.5kgf/cm?) |
|
|
Pressure Range |
Normal Working Pressure |
0-0.9 Mpa(0-9.2kgf/cm?) |
|
Low Working Pressure |
-99.99-0Kpa(-750~0mmHg) |
|
|
Ambient Temperature |
0-60? |
|
|
Applicable Pipe |
PU Tube |
|
|
Material |
Stainless Steel |
|

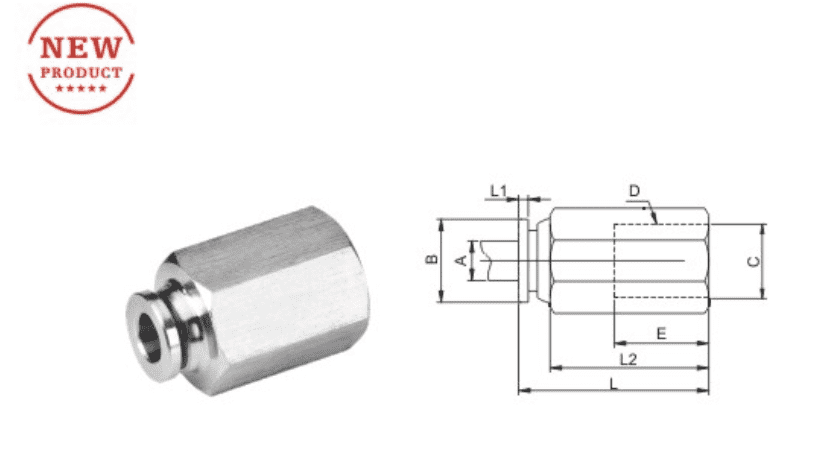

Dimension
| Model | A | B | C | D | E | F | L1 | L2 |
| BCK-PCF4-01 | 4 | 10 | G1/8 | 12 | 9 | 25 | 2 | 20 |
| BCK-PCF4-02 | 4 | 10 | G1/4 | 17 | 11 | 25 | 2 | 20 |
| BCK-PCF6-01 | 6 | 12 | G1/8 | 14 | 9 | 28 | 2 | 23 |
| BCK-PCF6-02 | 6 | 12 | G1/4 | 17 | 11 | 28 | 2 | 23 |
| BCK-PCF6-03 | 6 | 12 | G3/8 | 19 | 11 | 29 | 2 | 23 |
| BCK-PCF6-04 | 6 | 12 | G1/2 | 24 | 13 | 29 | 2 | 23 |
| BCK-PCF8-01 | 8 | 14 | G1/8 | 14 | 9 | 28 | 2 | 23 |
| BCK-PCF8-02 | 8 | 14 | G1/4 | 17 | 11 | 28 | 2 | 22 |
| BCK-PCF8-03 | 8 | 14 | G3/8 | 19 | 11 | 28 | 2 | 22 |
| BCK-PCF8-04 | 8 | 14 | G1/2 | 24 | 13 | 30 | 2 | 24 |
| BCK-PCF10-02 | 10 | 16 | G1/4 | 17 | 11 | 28 | 2 | 22 |
| BCK-PCF10-03 | 10 | 16 | G3/8 | 19 | 11 | 29 | 2 | 23 |
| BCK-PCF12-02 | 12 | 18 | G1/4 | 17 | 11 | 27 | 2 | 22 |
| BCK-PCF12-03 | 12 | 18 | G3/8 | 19 | 11 | 27 | 2 | 22 |
| BCK-PCF12-04 | 12 | 18 | G1/2 | 24 | 13 | 31 | 2 | 25 |
| BCK-PCF14-02 | — | — | — | — | — | — | — | — |
| BCK-PCF14-03 | — | — | — | — | — | — | — | — |
| BCK-PCF14-04 | — | — | — | — | — | — | — | — |
| BCK-PCF14-06 | — | — | — | — | — | — | — | — |
| BCK-PCF16-02 | — | — | — | — | — | — | — | — |
| BCK-PCF16-03 | — | — | — | — | — | — | — | — |
| BCK-PCF16-04 | 16 | 22 | G1/2 | 24 | 13 | 31 | 2 | 25 |
| BCK-PCF16-06 | — | — | — | — | — | — | — | — |
Note:NPT?PT?G thread are optional
