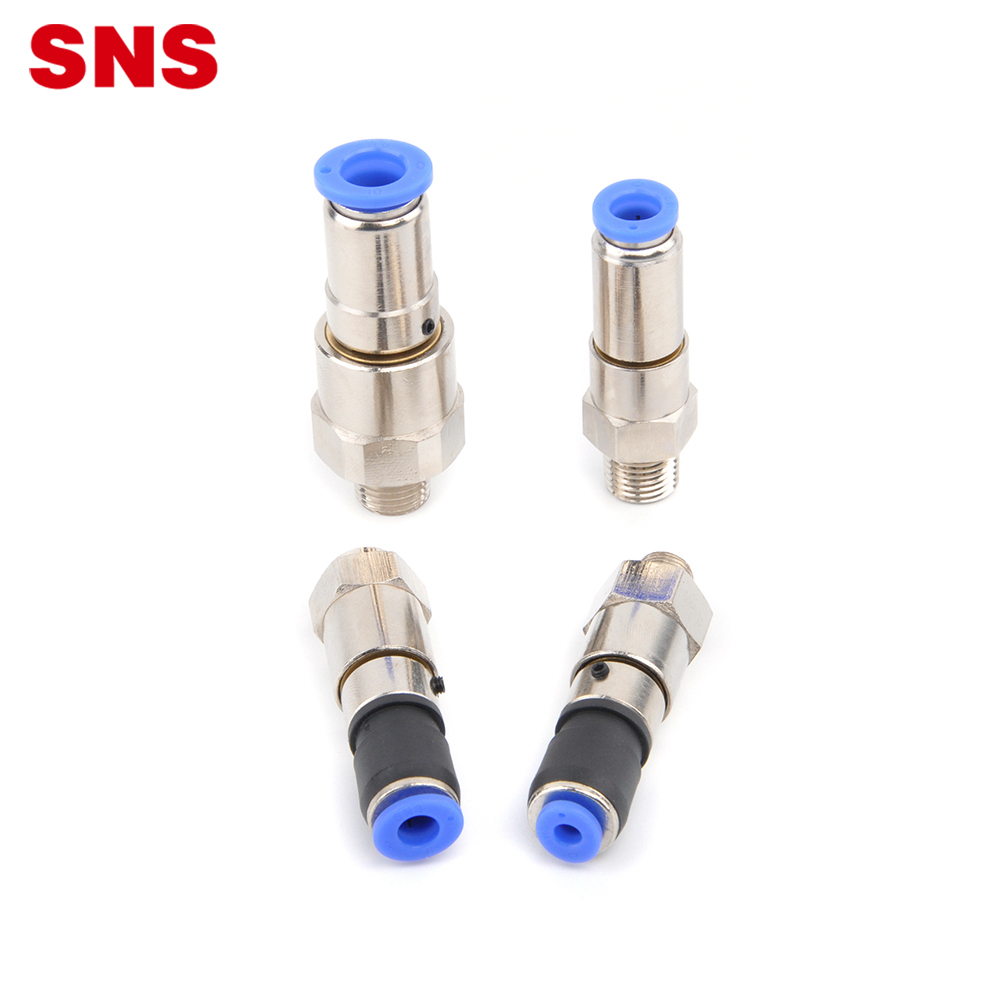

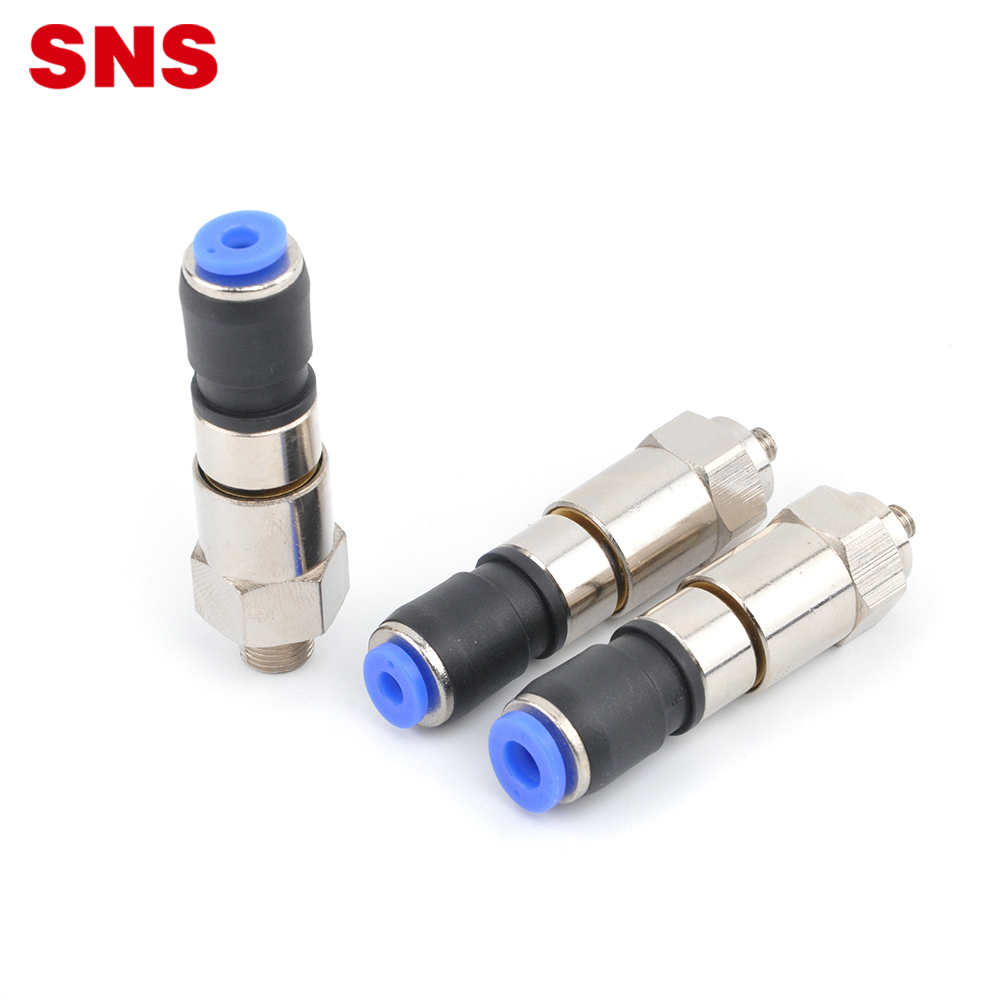

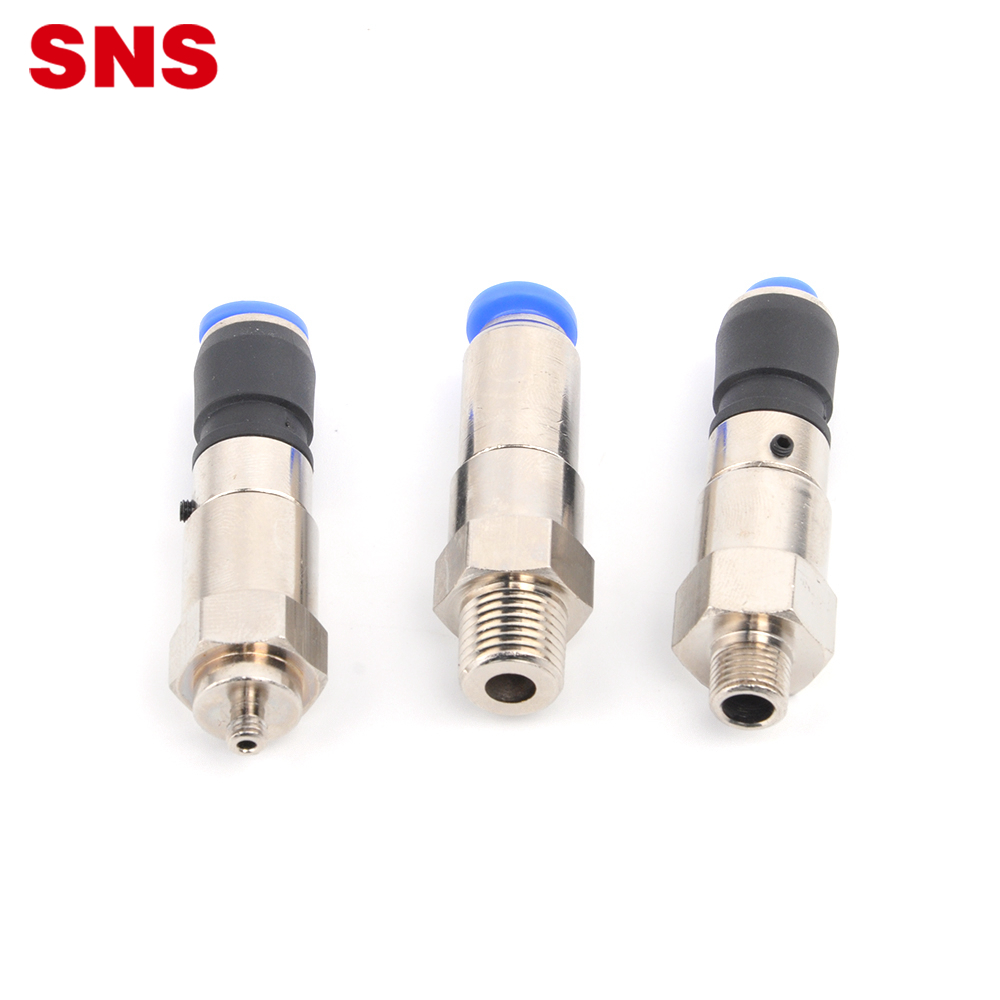

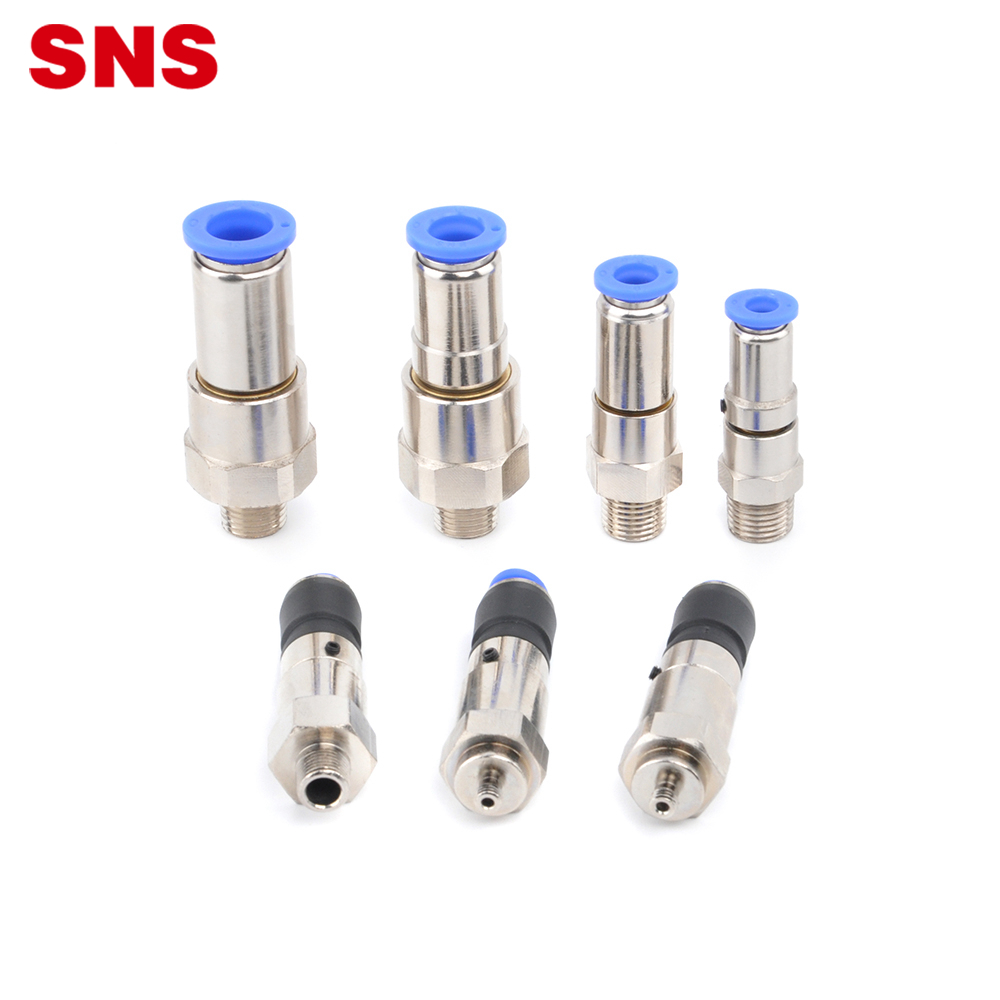

Product Description
Feature :
We strive to be perfect in every detail.
Brass material make fittings light and compact.
The sleeve with various sizes for option is very easy to connect and disconnect.
| Fluid | Compresses Air, if liquid please ask for technical support |
| Proof Pressure | 1.32Mpa (1.35kgf/cm2) |
| Working Pressure Range | 0~0.9Mpa (0~9.2kgf/cm2) |
| Ambient Temperature | 0~60? |
| Applicable Pipe | PU Tube |
| Material | Brass |
/>
| Model | OD | R | F | C | B | P2 | A | H | RPM |
| NHRC 4-M5 | 4 | M5 | 26 | 18 | 52 | 14 | 3.5 | 15 | 1500 |
| NHRC 4-M6 | 4 | M6/8 | 26 | 18 | 53.5 | 14 | 6 | 15 | 1500 |
| NHRC 4-01 | 4 | PT1/8 | 26 | 18 | 52 | 14 | 8 | 15 | 1500 |
| NHRC 6-M5 | 6 | M5 | 24.5 | 18.5 | 51.5 | 14.5 | 3.5 | 15 | 1200 |
| NHRC 6-01 | 6 | PT1/8 | 24.5 | 18.5 | 51 | 14.5 | 8 | 15 | 1200 |
| NHRC 6-02 | 6 | PT1/4 | 24.5 | 18.5 | 52 | 14.5 | 10 | 15 | 1200 |
| NHRC 8-01 | 8 | PT1/8 | 26 | 23 | 57.5 | 15 | 8 | 17 | 1200 |
| NHRC 8-02 | 8 | PT1/4 | 26 | — | 57 | 15 | 11 | 17 | 1200 |
| NHRC 8-03 | 8 | PT3/8 | 26 | — | 56.5 | 15 | 11 | 17 | 1200 |
| NHRC 10-02 | 10 | PT1/4 | 30 | — | 68 | 18.5 | 11 | 24 | 1000 |
| NHRC 10-03 | 10 | PT3/8 | 30 | 22 | 65 | 18.5 | 11 | 24 | 1000 |
| NHRC 10-04 | 10 | PT1/2 | 30 | 22 | 66 | 18.5 | 12 | 24 | 1000 |
| NHRC 12-02 | 12 | PT1/4 | 31 | — | 69 | 19 | 11 | 24 | 1000 |
| NHRC 12-03 | 12 | PT3/8 | 31 | — | 66 | 19 | 11 | 24 | 1000 |
| NHRC 12-04 | 12 | PT1/2 | 31 | — | 67 | 19 | 12 | 24 | 1000 |
