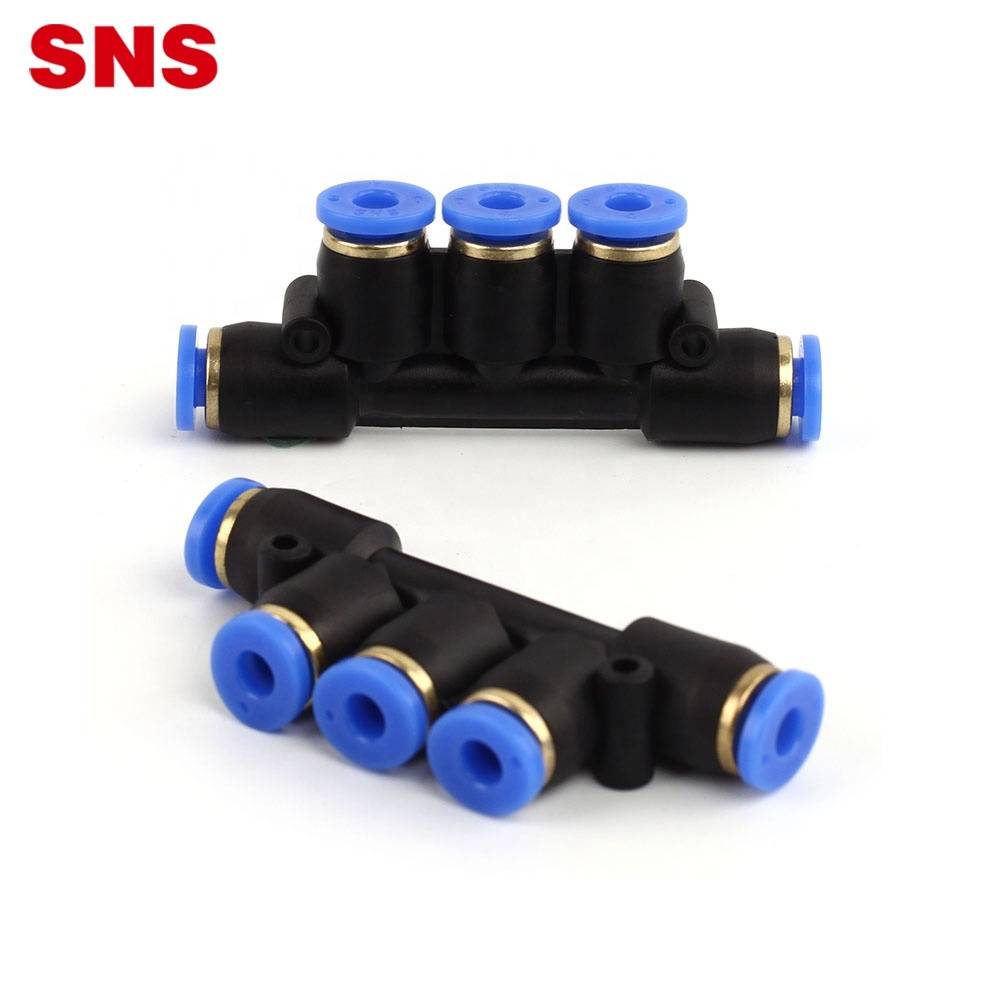

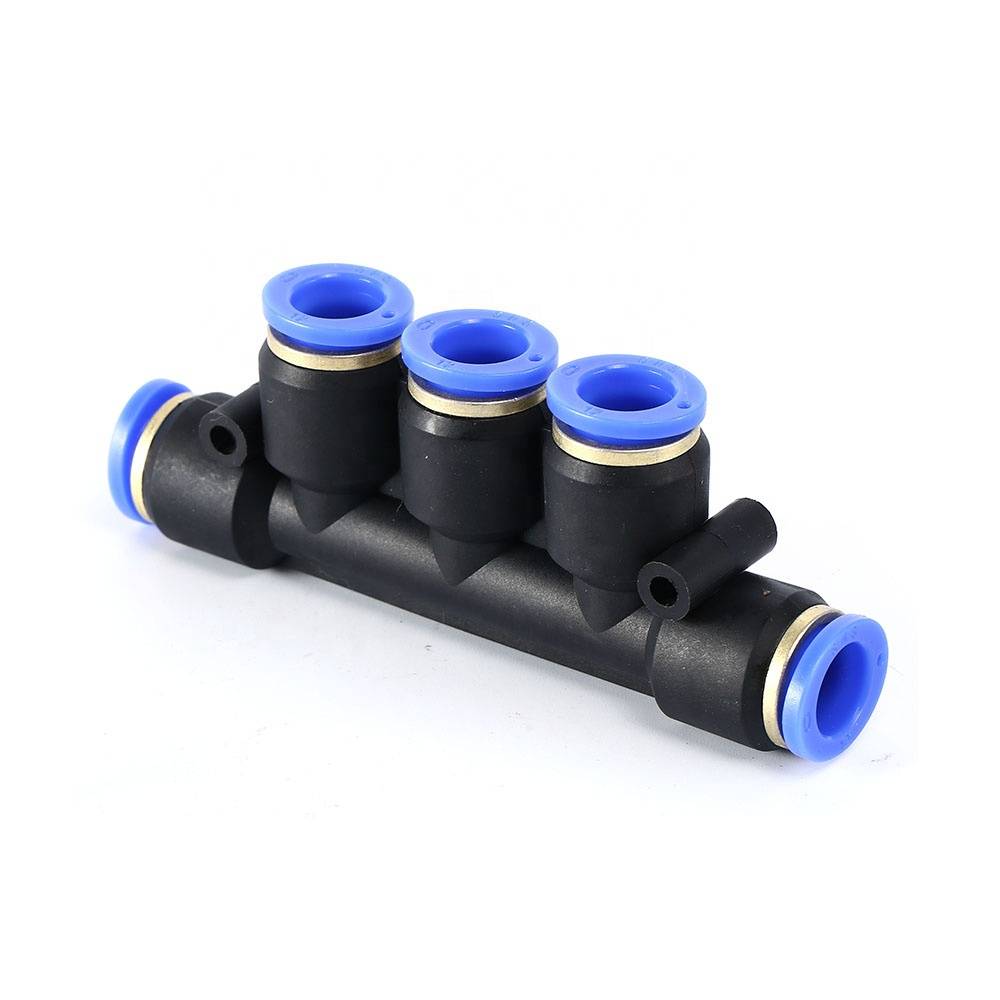

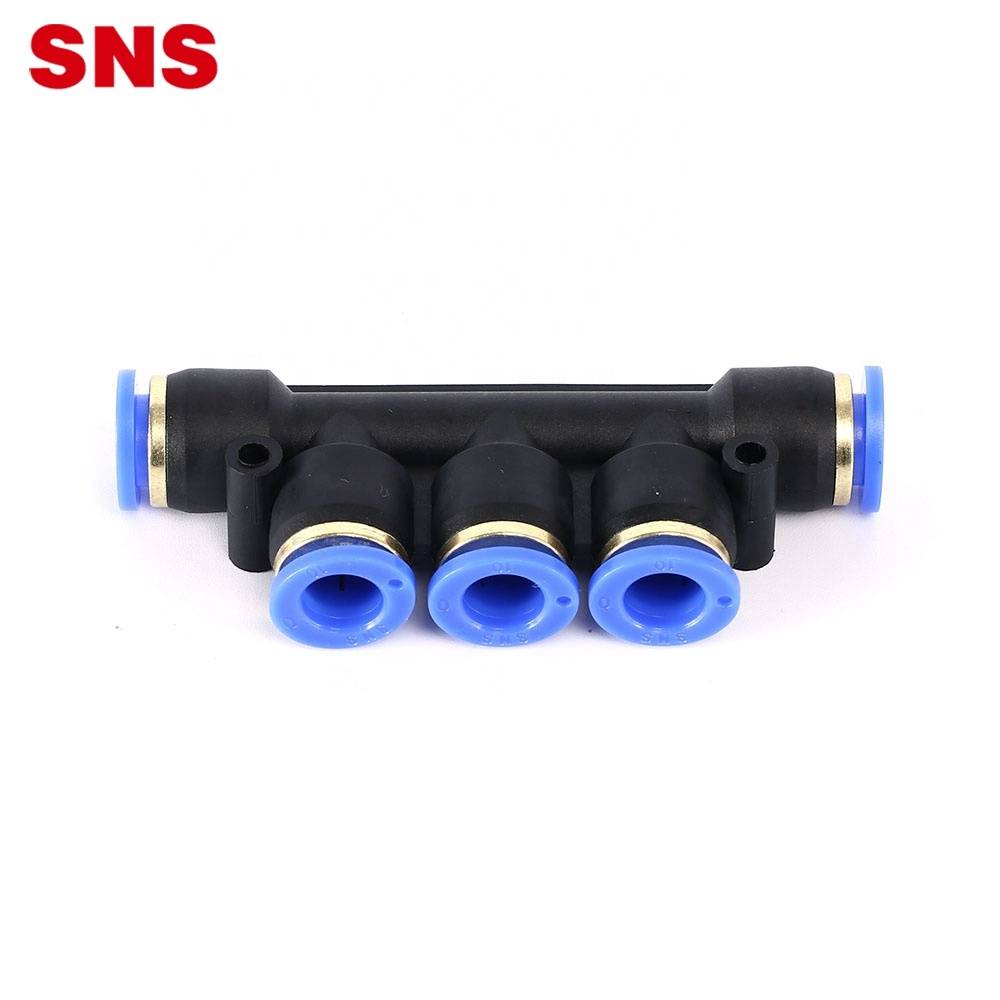

Product Description
Feature :
We strive to be perfect in every detail.
Plastic material makes fittings light and compact, metal rivet nut realizes longer service
life. The sleeve with various sizes for option is very easy to connect and disconnect.
Good sealing performance ensures high quality.
Note :
1. NPT, PT, G thread are optional.
2. Pipe sleeve color can be customized.
3. Special type of fttings also can be customized.
| Inch Pipe | Metric Pipe | ?D | B | F | J | ?d |
| SPW5/32 | SPW-4 | 4 | 62 | 37 | 12 | 2.5 |
| SPW1/4 | SPW-6 | 6 | 69 | 43 | 13.5 | 3.5 |
| SPW5/16 | SPW-8 | 8 | 80.5 | 55 | 17.5 | 4 |
| SPW3/8 | SPW-10 | 10 | 97 | 62.5 | 20 | 4 |
| SPW1/2 | SPW-12 | 12 | 113.5 | 71.5 | 23 | 5 |
