SNS SPX Series one touch 3 way Y type tee male thread air hose tube connector plastic pneumatic quick fitting

Pneumatic fittings are used in pneumatic piping. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping.
1.One touch type connection tool for air pressure piping.

2.Various uses depending on the user’s environment in limited spaces.

3.One action inserts the tube to release and connect easily.

4. Custom fitting as your drawing or we make drawing as your sample.

5. Raw Material conforms to ROHS standards.

Артикул: c6e6b1c3055b Категория: Метка:
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
SNS
Model Number:
SPX
Technics:
Casting
Connection:
Male
Shape:
Y type
Head Code:
Round
Fluid:
Air
Max. working pressure:
1.32Mpa
Pressure range:
0~0.9MPa
Ambient temperature:
0 ~ 60°C
Applicable Pipe:
PU Tube, Nylon Tube
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Vacuum packing, outside box packing
Port
Ningbo or Shanghai
Lead Time :
Quantity(Pieces) 1 – 100 101 – 500 501 – 1000 >1000
Est. Time(days) 3 5 7 To be negotiated

SNS SPX Series one touch 3 way Y type tee male thread air hose tube connector plastic pneumatic quick fitting

Banner

Product Description

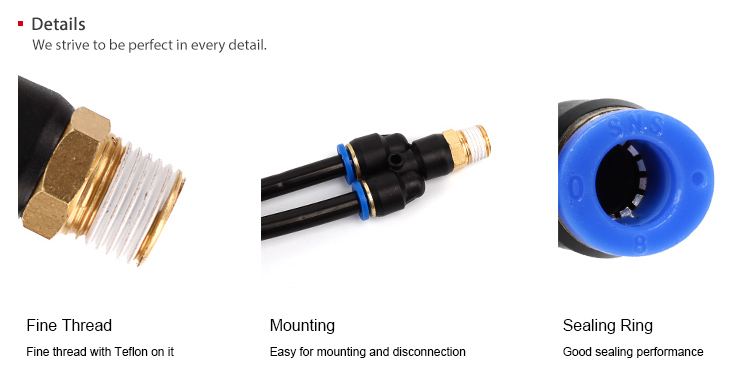

. Feature :
We strive to be perfect in every detail.
Brass and plastic material make fittings light and compact, metal rivet nut realizes
longer service life. The sleeve with various sizes for option is very easy to connect
and disconnect. Good sealing performance ensures high quality.
Note :
1. NPT, PT, G thread are optional.
2. Pipe sleeve color can be customized.
3. Special type of fttings also can be customized.

Inch Pipe Metric Pipe OD R A B H J Od
SPX5/32-M5 SPX4-M5 4 M5 3.5 42.5 10 11.5 2.5
SPX5/32-01 SPX4-01 4 PT1/8 7 43 10 11.5 2.5
SPX5/32-02 SPX4-02 4 PT1/4 9 46 14 11.5 2.5
SPX1/4-M5 SPX6-M5 6 M5 3.5 45 12 13.5 3.5
SPX1/4-01 SPX6-01 6 PT1/8 7 46 12 13.5 3.5
SPX1/4-02 SPX6-02 6 PT1/4 9 48.5 14 13.5 3.5
SPX1/4-03 SPX6-03 6 PT3/8 10 48.5 17 13.5 3.5
SPX1/4-04 SPX6-04 6 PT1/2 10 51 21 13.5 3.5
SPX5/16-01 SPX8-01 8 PT1/8 8 51 14 16.5 3.5
SPX5/16-02 SPX8-02 8 PT1/4 10 53 14 16.5 4
SPX5/16-03 SPX8-03 8 PT3/8 10 53.5 17 16.5 4
SPX5/16-04 SPX8-04 8 PT1/2 11 55 21 16.5 4
SPX3/8-01 SPX10-01 10 PT1/8 8 56.5 17 19 4
SPX3/8-02 SPX10-02 10 PT1/4 10 58.5 17 19 4
SPX3/8-03 SPX10-03 10 PT3/8 10 58.5 17 19 4
SPX3/8-04 SPX10-04 10 PT1/2 11 59.5 21 19 4
SPX1/2-01 SPX12-01 12 PT1/8 8 62 19 21.5 4
SPX1/2-02 SPX12-02 12 PT1/4 10 64 19 21.5 4
SPX1/2-03 SPX12-03 12 PT3/8 10 64 19 21.5 4
SPX1/2-04 SPX12-04 12 PT1/2 11 65.5 21 21.5 4
  SPX14-03 14 PT3/8 12 64 24 23.5 4
  SPX14-04 14 PT1/2 15 67 24 23.5 4
  SPX16-03 16 PT3/8 12 75.5 24 27 4
  SPX16-04 16 PT1/2 13 78.5 24 27 4
